This article provides step-by-step instructions on configuring and managing settings for enabling network authentication using an External Captive Portal in a UAM-powered environment.
Prerequisites
- Ensure that you have completed the initial step of network creation by configuring its General Settings.
Step-by-Step Instructions
Step-1: Set Up the Network's General Settings
- Begin by configuring the General Settings as the first step in creating a network.
- For detailed instructions, refer to the network creation guide.
Step-2: Select External Captive Portal (UAM) as the Authentication Mode

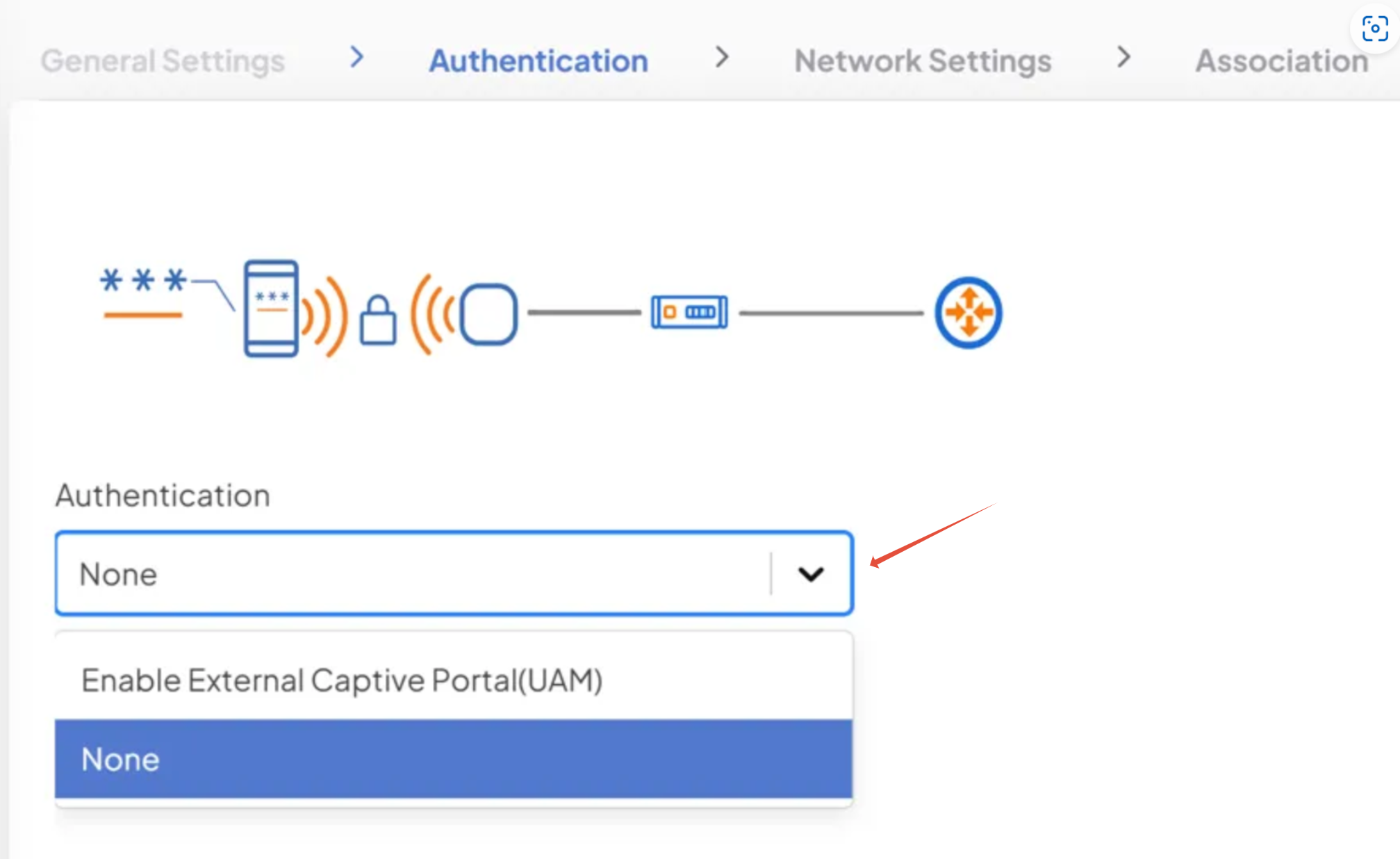

- In the Authentication section of the network setup process, choose External Captive Portal (UAM) from the drop-down menu under Authentication Mode.

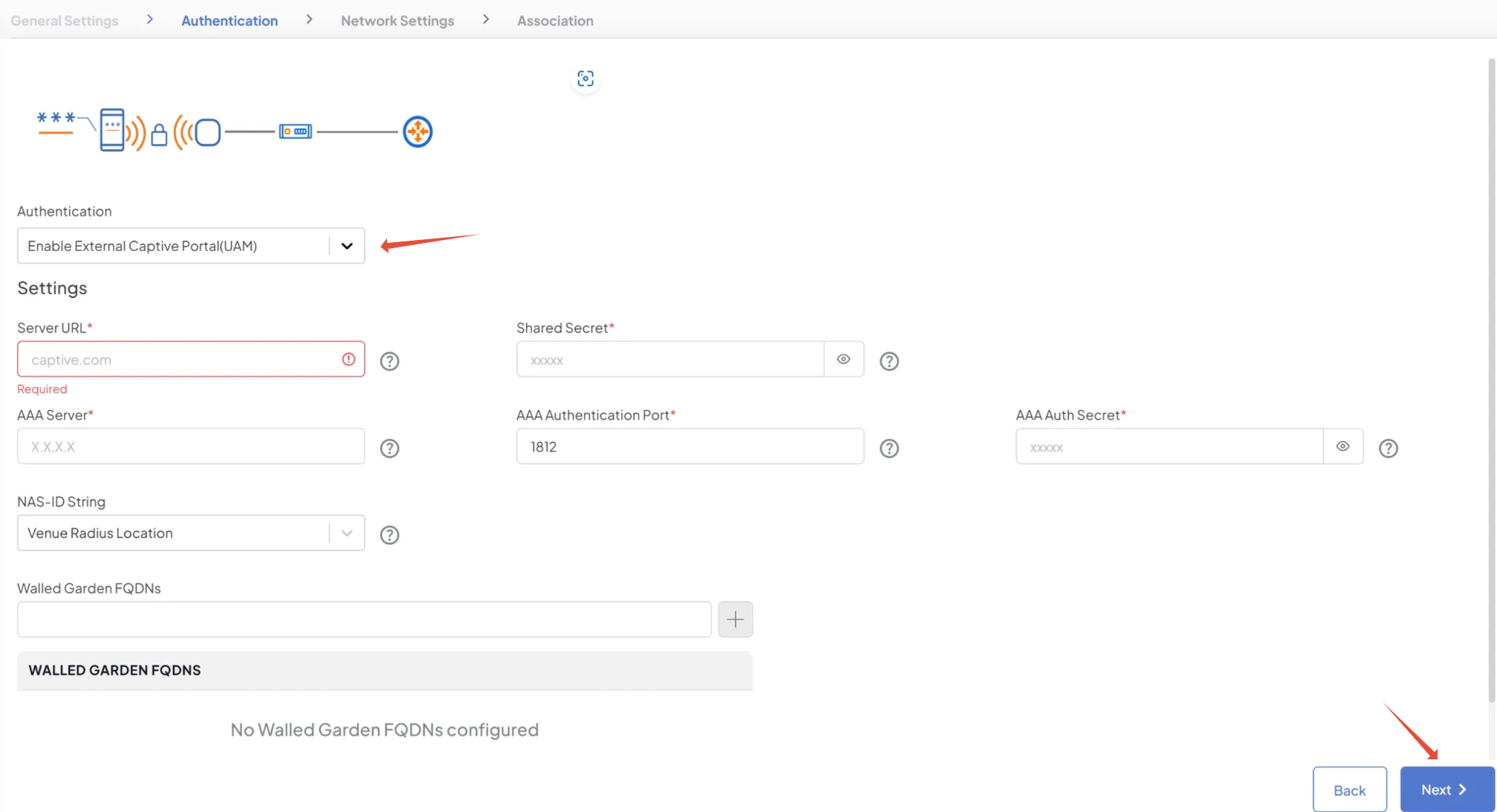

- Once selected, the configuration options for the captive portal will be displayed, as shown in the example below.
Step-3: Enter Required Details
- Fill in all the necessary fields on this screen, ensuring that all mandatory fields are completed.
- The following table outlines the available fields and their respective allowed values.
| Attribute | Data Type | Mandatory | Limit | Minimum value | Maximum value | Notes |
|---|---|---|---|---|---|---|
| Server URL | Alpha-Numeric | Yes | 256 | Precede with http:// or https://. | ||
| Shared Secret | Alpha-Numeric | Yes | 32 | None | ||
| AAA Server | URL | Yes | 32 | *Refer known limitations | ||
| AAA Authentication Port | Yes | 1 | 65535 | *Refer known limitation | ||
| AAA Auth Secret | Alpha-Numeric | Yes | 32 | None | ||
| NAS-ID String | Options:1) Venue Radius Location2) Custom3) None | No | ||||
| NAS-ID Value | Alpha-Numeric | Yes | 32 | |||
| Walled Garden FQDNs | List | No |
Step-4: Click “Next”
Expected Results
- The settings should get accepted and should move to the next screen “Network Settings”
Additional Details
- Error Codes
| Error Code | Message | Corrective Action |
|---|---|---|
| VALIDATION_FAILED | Invalid auth-port received in the request | AAA Authentication Port has allowed values between 1 and 65535. Dismiss the error to recreate with the correct value. |
| VALIDATION_FAILED | auth-port should be maximum 65535 (or) auth-port should be minimum 1 | Configure a valid port number in the allowed range. |
| VALIDATION_FAILED | uam-secret should be maximum 32 characters long | Configure the Secret Key within the allowed max character limit. |
| VALIDATION_FAILED | auth-server should be maximum 256 characters long | Configure the Server URL within the allowed max character limit. |
| VALIDATION_FAILED | uam-server should be maximum 256 characters long | Configure the Secret URL within the allowed max character limit. |
Note: If the error Persists, use the option "Create Ticket" in the toast pop-up message, to jump to the Ticket creation screen to file a ticket.
FAQs
- Q: Which type of Networks does the UAM Captive Portal is applicable and supported?
A: The UAM Captive portal feature is supported on Passphrase and Public type.
Known limitations
AAA Server IP Configuration Issue (Internal Case #1963): Users are unable to configure an IP address in the AAA Server IP field. Users however would be able to specify a domain name.
AAA Authentication Port Restriction (Internal Case #1964): Custom AAA Authentication Port numbers cannot be configured initially; only port 1812 is accepted. If an error occurs, reverting back to 1812 is also not possible.
Workaround: Create the network with port 1812, then edit the network settings to change it to any value within the 1–65535 range.
