How to create network as MPSK AAA and assign it to venue?

Created by Sneha Ashok, Modified on Thu, 3 Apr at 2:14 PM by Sneha Ashok

Follow below steps to create a network as MPSK AAA and assign it to the venue:

Step 1: From Left menu, select ‘Networks’.

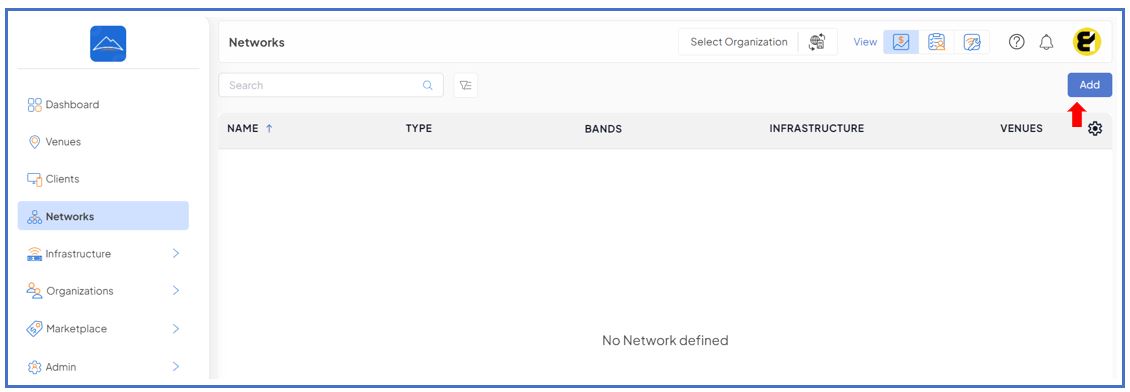

Step 2: Click on ‘Add’ button at the top right corner of the screen.

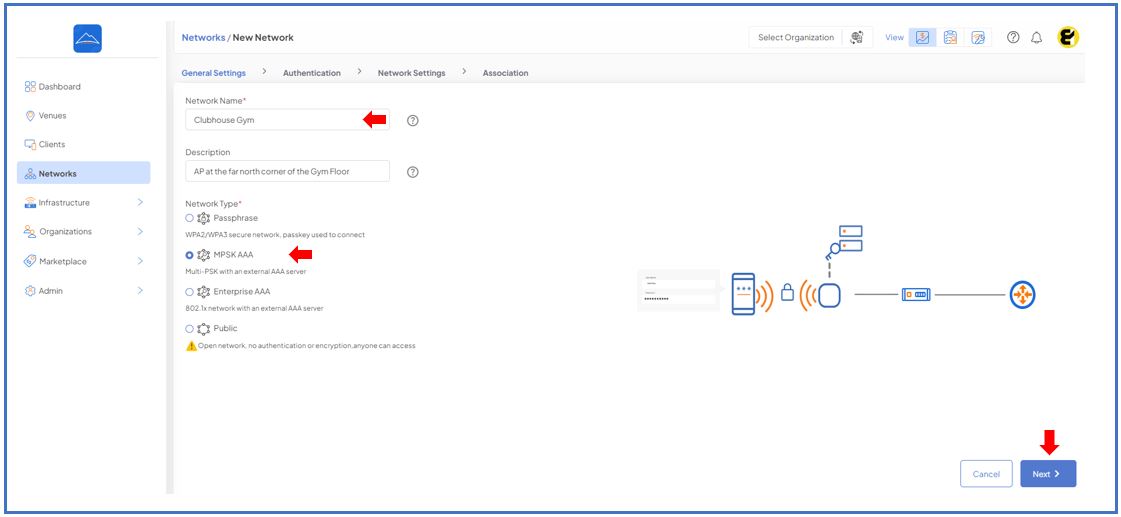

Step 3: Enter the Network Name, Description and Network Type as ‘MPSK AAA’. Click on Next in the bottom.

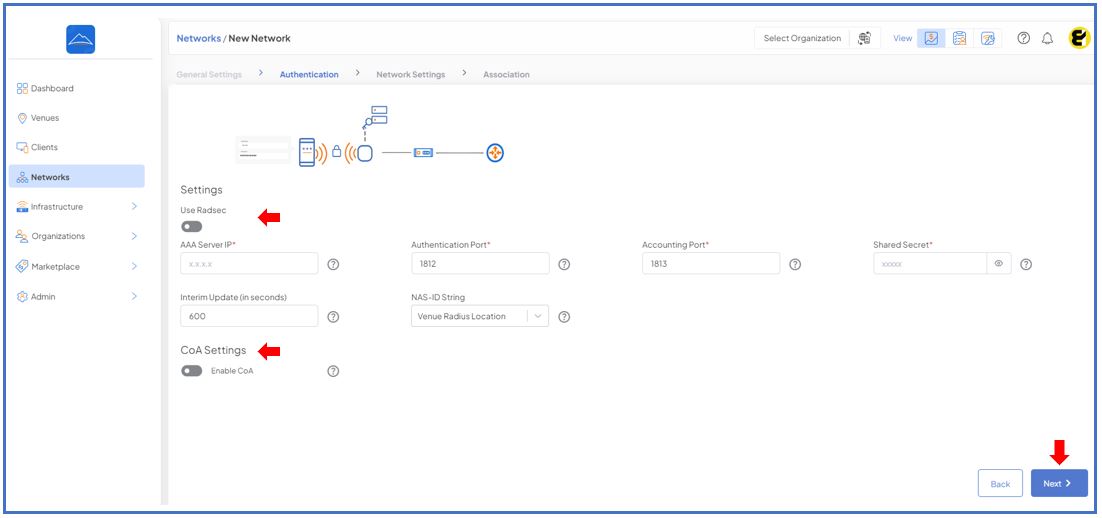

Step 4: In the following screen, you can enter various details about the AAA server, port, shared secret and other information that is required for the authentication. Optionally you may also engage CoA (Change of Authorization) using the toggle button as indicated below.

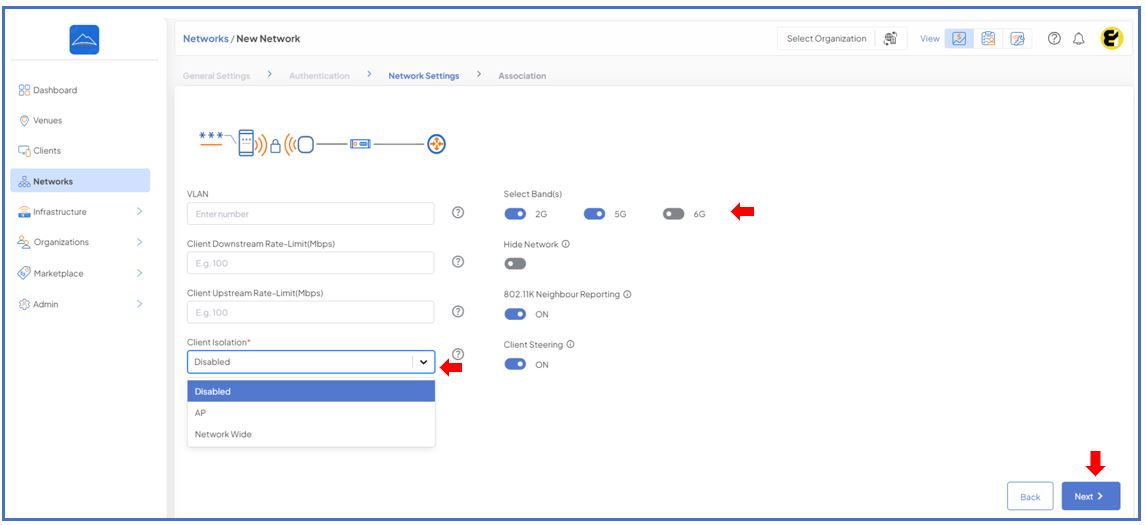

Step 5: Once the Authentication settings details are filled, proceed towards making selections of the bands, hiding of the SSID, 802.1k neighbor reporting, Client steering etc.

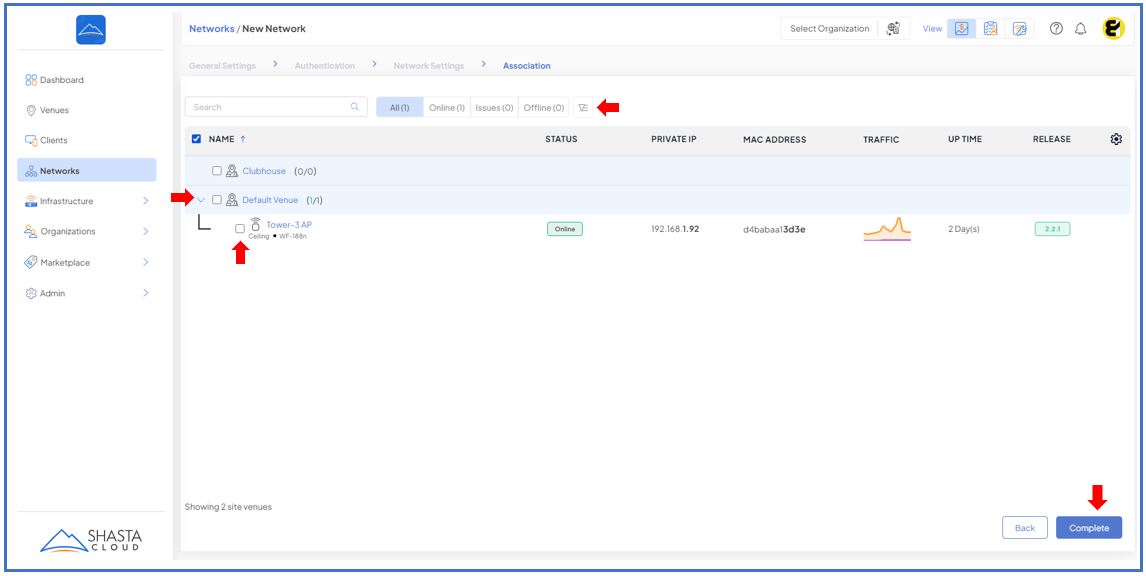

Step 6: On the next screen for association to a venue OR at a individual AP level the network, you can choose a venue at the top level or fine grained selection to an individual AP by expanding or using the Search feature box along with filters above the table. Click on ‘Complete’ button after making your selection of infrastructure to the new network.

Congratulations! You are now done creating a new MPSK AAAnetwork and making an association of it your Shasta Infrastructure.
